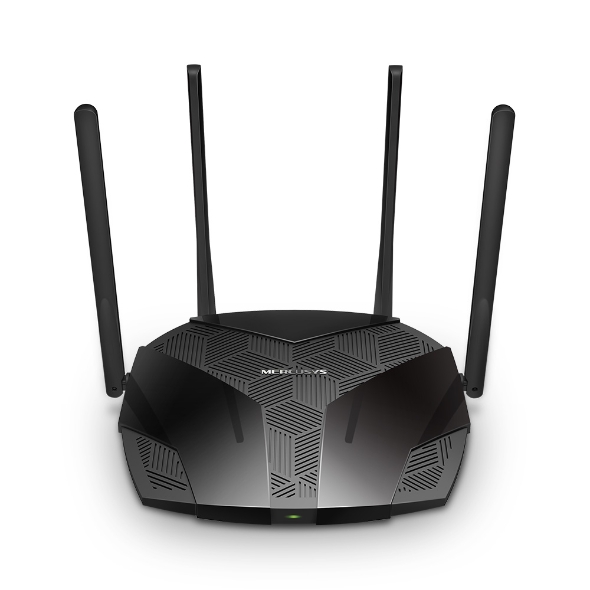

Step-by-Step Instructions to Set Up Mercusys MR80X AX3000 Router
1. Connect Your Router to the ONT
- Physical Connection:
- Connect the WAN port of the Mercusys MR80X AX3000 router to the first port (LAN1 or GE1) on your Optical Network Terminal (ONT) using an Ethernet cable.
- Sometimes we connect to second port instead of first - check your Welcome email instructions to make sure which port you should use.
- Ensure the router is powered on and that your computer or smartphone is connected to the router via Wi-Fi or a LAN cable.
2. Access the Router’s Admin Panel
- Login:
- Open a web browser on a connected device and enter
http://mwlogin.netorhttp://192.168.1.1into the address bar. - You will be prompted to log in. The default credentials are:
- Username:
admin - Password:
admin
- Username:
- If you have changed the default credentials and cannot remember them, proceed to Step 8 for resetting the router.
- Open a web browser on a connected device and enter

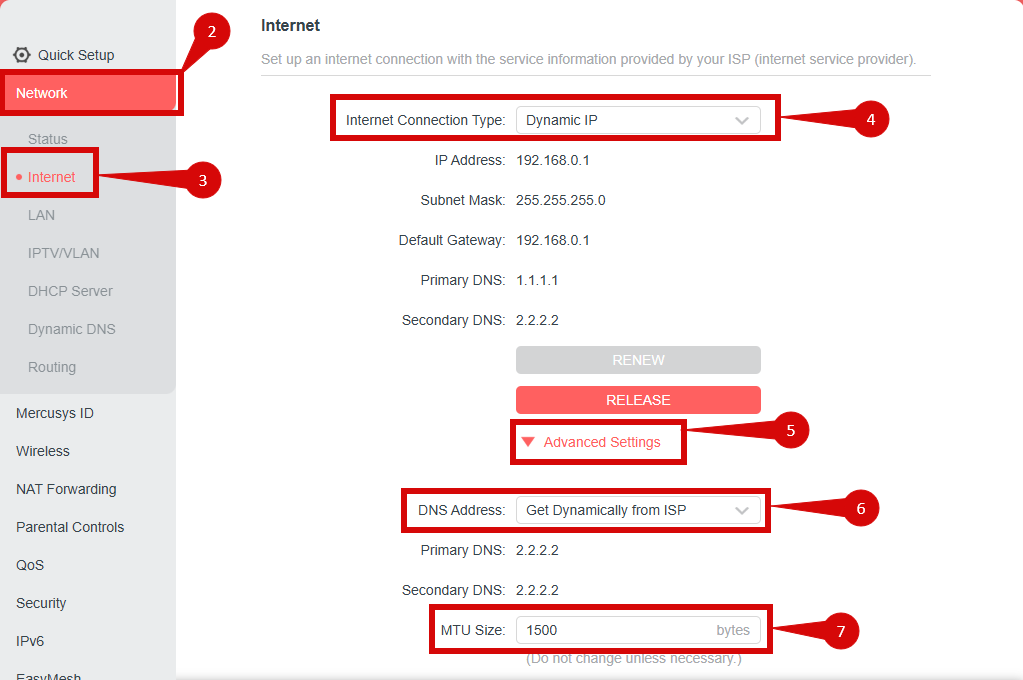

3. Internet Connection Type Settings (DHCP)
- Once logged in, follow these steps to set up the Internet connection type:
- Navigate to Internet > Internet Settings.
- Set the Internet Connection Type to Dynamic IP (DHCP).
- Click Save to confirm the changes.

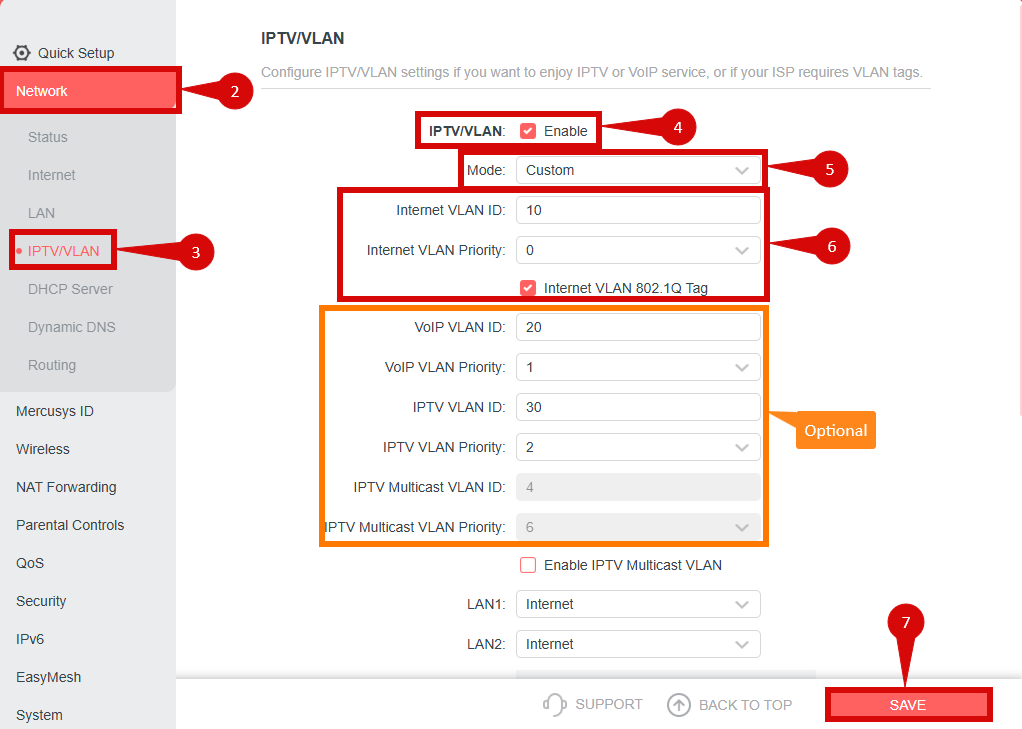

4. Configure VLAN Settings
- To set up VLAN:
- Navigate to Advanced Settings > Network > IPTV/VLAN.
- Enable VLAN Tagging.
- Configure the following settings:
- Internet VLAN ID:
10 - Priority:
0
- Internet VLAN ID:
- Click Save to confirm the changes.
5. Save the Configuration
- After entering the VLAN and DHCP settings, click Save to confirm the changes.
- The router may restart to apply the new settings. Wait a few minutes for the restart to complete.
6. Verify the Internet Connection
- Once the router has restarted, check the status of your Internet connection by looking at the WAN/Internet LED indicator on the router. It should be solid white.
- On your connected device, try accessing a website to confirm that your connection is active.
7. Troubleshooting (If Needed)
- If your Internet connection is not working:
- Restart both the ONT and the router by unplugging them for 30 seconds and plugging them back in.
- Double-check the VLAN and DHCP settings in the router’s configuration.
- Ensure that the Ethernet cable is securely connected to the correct ports (first port on the ONT and the WAN port on the router).
8. Reset the Router (If Required)
- If you cannot access the router due to forgotten login credentials or misconfiguration, reset the router to factory settings:
- Find the reset button at the back of the router.
- Press and hold the reset button for about 10-15 seconds using a pin or paperclip.
- Release the button once the router’s lights start flashing. The router will reboot and return to factory settings.
- Log in using the default credentials (admin/admin) and repeat the configuration process from Step 2.
9. Contact Support
- If you are still unable to connect, please reach out to our support team at our Support Portal - https://help.simplybroadband.co.nz for further assistance.
