Physical connection:

1. Connect the WAN port of the ASUS DSL-AC68U AC1900 router to the first port (LAN1 or GE1) on your Optical Network Terminal (ONT) using an ethernet cable.
2. Sometimes we connect to second port instead of first - check your Welcome email instructions to make sure which port you should use.
3. Ensure the router is powered on and that your computer or smartphone is connected to the router via Wi-Fi or a LAN cable.

• Open a web browser on a connected device and enter 192.168.1.1 (or 192.168.0.1) into the address bar.
• You will be prompted to log in. The default credentials are:
  • Username: admin
  • Password: admin
• If you have changed the default credentials and cannot remember them, proceed to Step 8 for resetting the router.

Once logged in, follow these steps to set up the internet connection type

• You will need to create a dedicated WAN Port follow instruction below:

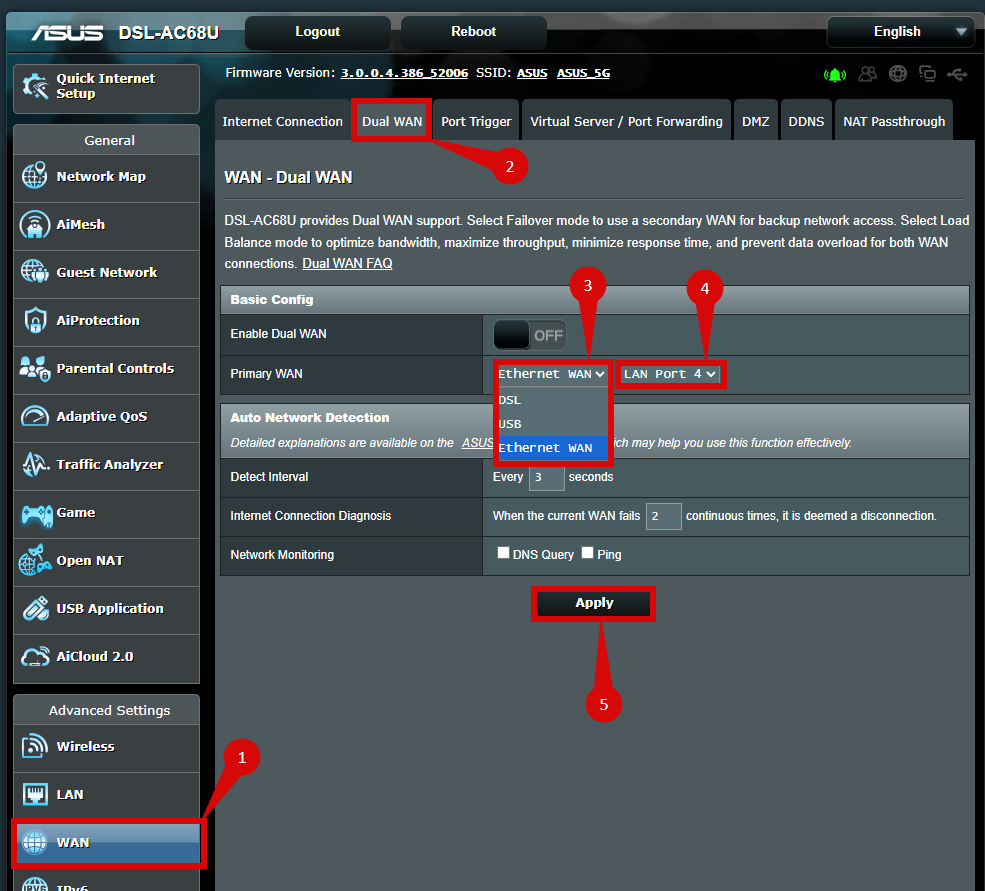

  • Navigate to WAN > Dual WAN (step 1 & 2).
    • Set Primary WAN to Ethernet WAN, LAN Port 4 (this means your WAN port will be LAN 4) (step 3 & 4).
• Click Apply (step 5).

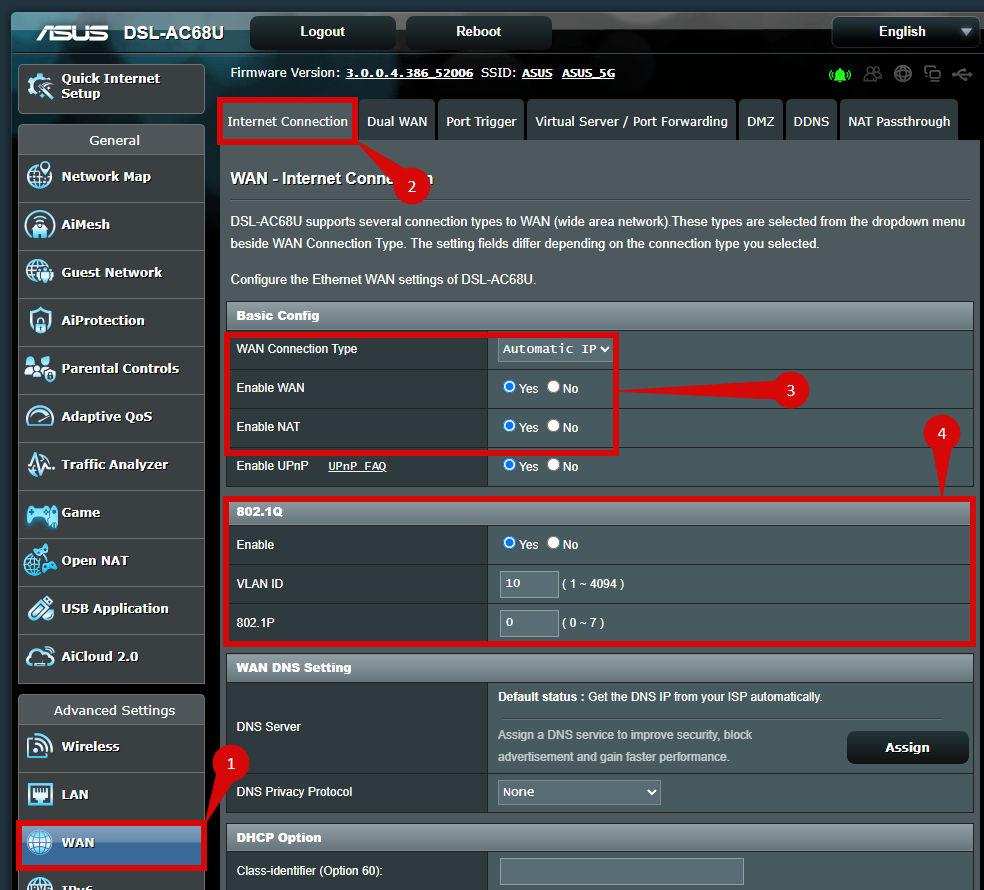

• Navigate to WAN > Internet Connection (step 1 & 2).
• Configure the following: (step 3).
  • Set the WAN Connection Type to Automatic IP (DHCP).
  • Enable WAN = Yes.
  • Enable NAT = Yes.
• To configure VLAN under 802.1Q configure as follows: (step 4).
  • Enable = Yes.
  • VLAN ID = 10.
  • 802.1P = 0.
• Click Apply to confirm the changes.

• After entering the VLAN and DHCP settings, click Apply to confirm the changes.
• The router may restart to apply the new settings. Wait a few minutes for the restart to complete.

• Once the router has restarted, check the status of your internet connection by looking at the WAN/Internet LED indicator on the router. It should be solid green.
• On your connected device, try accessing a website to confirm that your connection is active.

If your internet connection is not working:

1. Restart both the ONT and the router by unplugging them for 30 seconds and plugging them back in.
2. Double-check the VLAN and DHCP settings in the router’s configuration.
3. Ensure that the ethernet cable is securely connected to the correct ports (first port on the ONT and the WAN port on the router).

If you cannot access the router due to forgotten login credentials or misconfiguration, reset the router to factory settings:

• Find the reset button at the back of the router.
• Press and hold the reset button for about 10-15 seconds using a pin or paperclip.
• Release the button once the router’s lights start flashing. The router will reboot and return to factory settings.
• Log in using the default credentials (admin/admin) and repeat the configuration process from Step 2.

To set up the credentials:

• In Setup Wizard, navigate to Check Connection and set up  the credentials (admin/admin).
• Navigate to Internet Setup:
  • The Setup Wizard will likely detect your internet connection type (Automatic IP/DHCP...), if not, Select No and click Next.
• Navigate to Router Setup:
  • You'll be prompted to set the Wi-Fi name (SSID) and password for both the 2.4 GHz and 5 GHz bands.
  • You can choose to have separate SSIDs for each band or use the same SSID for both.
  • Click Apply.
• Check that everything is correct and click Complete.

If you are still unable to connect, please reach out to our support team at our Support Portal — https://help.simplybroadband.co.nz — for further assistance.
