• To setup your deco router, you will need internet connection (mobile data etc.) in order to access the TP-Link cloud to register your device and verify your account.
• Web interface offers almost no configuration options, it allows you to view your device.
• You will NOT be able to configure your Deco router until it is setup in the app.
• Once set up, the Deco app will allow you to connect to your device remotely.

• Physical connection:
  • Connect the WAN port of the TP-Link Deco XE75 AXE5400 router to the first port (LAN1 or GE1) on your Optical Network Terminal (ONT) using an ethernet cable.
  • Sometimes we connect to second port instead of first - check your Welcome email instructions to make sure which port you should use.
  • Ensure the router is powered on and that your computer or smartphone is connected to the router via Wi-Fi or a LAN cable.

It is highly recommended that you use the Deco App for this device. (If you manually configure you wont have access to all the configuration options).

Make sure to download the Deco App:

•  For Android: https://play.google.com/store/...

• For Apple: https://apps.apple.com/us/app/...

• You will need to make an account and login to the app.
  • Login and follow prompts in the app to complete setup.
• Move on to step 3.0.

• Open a web browser on a connected device and enter http://tplinkdeco.net into the address bar.
• Log in using the default credentials:
  • Username: admin
  • Password: admin
• If you have changed the default credentials and cannot remember them, proceed to step 8 for resetting the router.
• Move on to step 3.1.

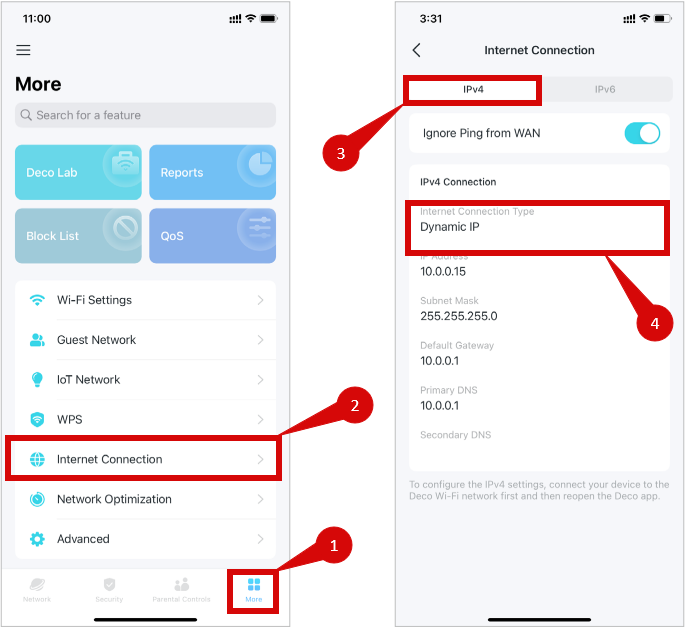

• Once logged in, follow these steps to set up the Internet connection type:
  • Navigate to Internet Settings.
  • Set the Internet Connection Type to Dynamic IP (DHCP).
  • Click Save to confirm the changes.
• See below for app interface screenshots:

• Move on to step 4.0.

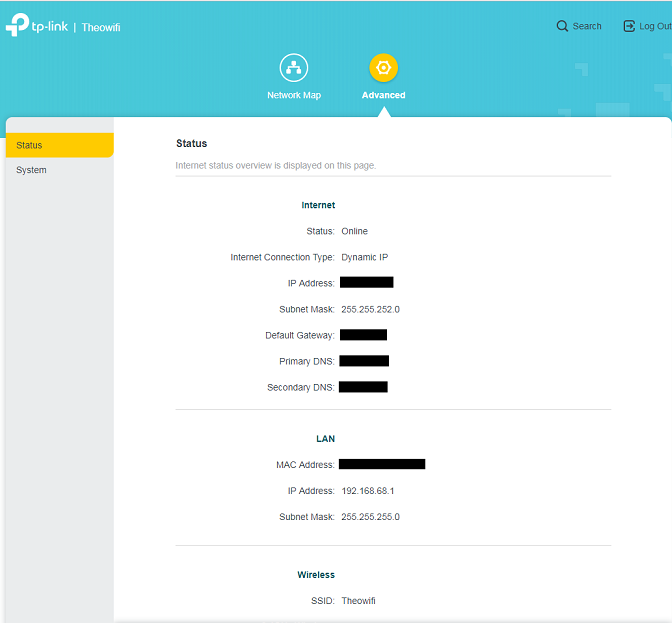

• Once logged in you will be able to view your Decos status, and system settings.

This is all you can view via the web interface.

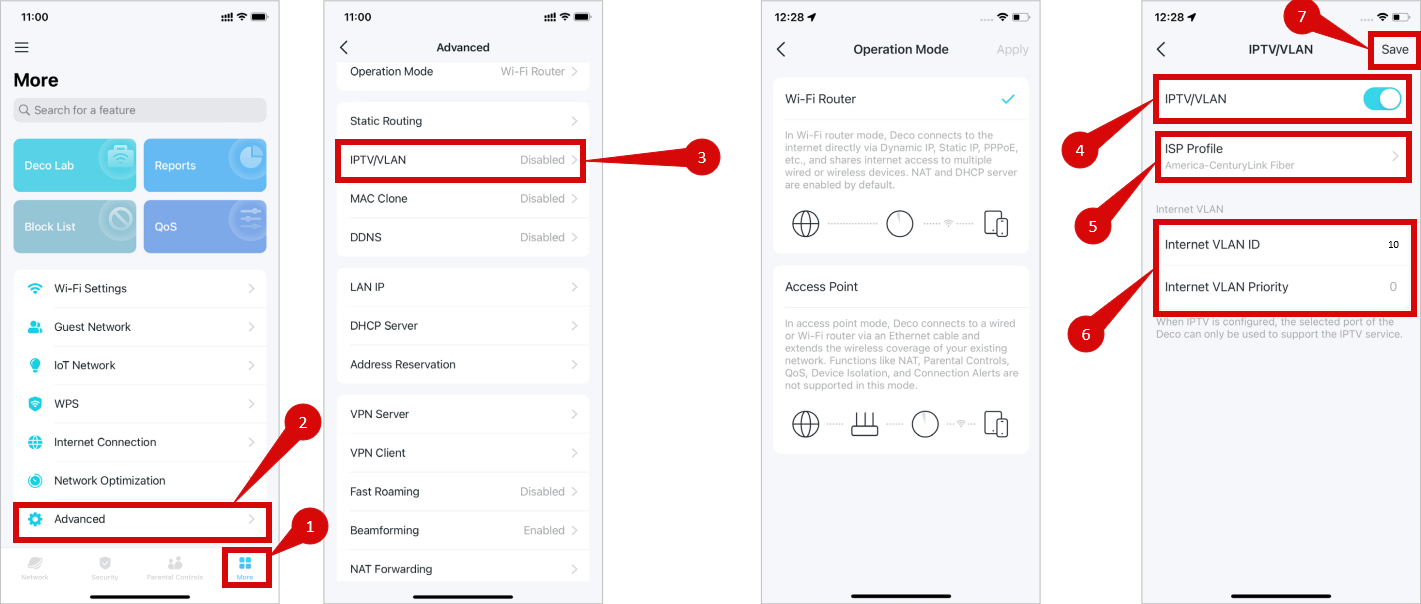

• Using the Deco App, please go to More> Advanced> IPTV/VLAN (step 1 - 3).
• Enable IPTV/VLAN, and click on Mode (step 4).
• Choose "New Zealand UFB" or "Custom" (step 5).
• Configure the following settings: (step 6).
  • Internet VLAN ID: 10
  • Priority: 0
• Click on Save to finish the setup process (step 7).

• After entering the VLAN and DHCP settings, click Save to confirm the changes.
• The router may restart to apply the new settings. Wait a few minutes for the restart to complete.

• Once the router has restarted, check the status of your Internet connection by looking at the WAN/Internet LED indicator on the router. It should be solid green.
• On your connected device, try accessing a website to confirm that your connection is active.

• If your internet connection is not working:
  1. Restart both the ONT and the router by unplugging them for 30 seconds and plugging them back in.
  2. Double-check the VLAN and DHCP settings in the router’s configuration.
  3. Ensure that the Ethernet cable is securely connected to the correct ports (first port on the ONT and the WAN port on the router).

• If you cannot access the router due to forgotten login credentials or misconfiguration, reset the router to factory settings:
  1. Find the reset button at the bottom of the router.
  2. Press and hold the reset button for about 10-15 seconds using a pin or paperclip.
  3. Release the button once the router’s lights start flashing. The router will reboot and return to factory settings.
  4. Log in using your TP-Link ID and repeat the configuration process from Step 2.

• TP-Link has a dedicated Toll-Free number to assist customers with tricky configurations in New Zealand. You can contact TP-Link support in New Zealand by calling 0800 875 465.
• If you are still unable to connect, please reach out to our support team at our Support Portal -https://help.simplybroadband.co.nz for further assistance.
