• VLAN ID: 10
• VLAN Priority: 0
• Connection Type: Dynamic IP (DHCP)

• Physical Connection:
  • Connect the WAN (Internet) port of the Netgear Orbi RBR350 router to the first port (LAN1 or GE1) on your Optical Network Terminal (ONT) using an Ethernet cable.
  • Sometimes we connect to second port instead of first - check your Welcome email instructions to make sure which port you should use.
  • Ensure the router is powered on and that your computer or smartphone is connected to the router via Wi-Fi or a LAN cable.

• Login:
  • Open a web browser on a connected device and enter http://orbilogin.com or http://192.168.1.1 into the address bar.
  • Log in using the default credentials:
    • Username: admin
    • Password: password (or check the router label for default credentials)
  • If you have changed the default credentials and cannot remember them, proceed to Step 8 for resetting the router.

Once logged in, follow these steps to set up the Internet connection type:

• Navigate to Basic Settings > Internet Setup.
• Set the Internet Connection Type to Dynamic IP (DHCP).
• Click Apply to confirm the changes.

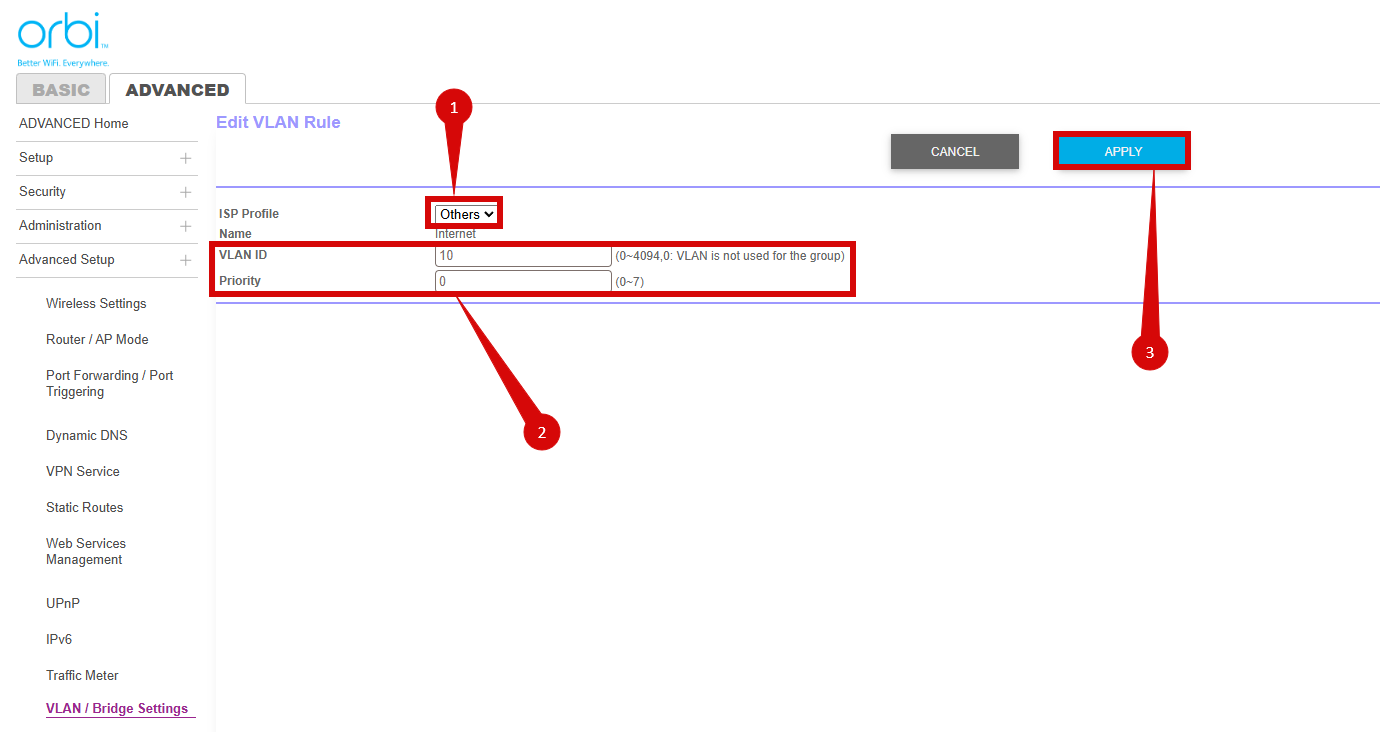

To set up VLAN:

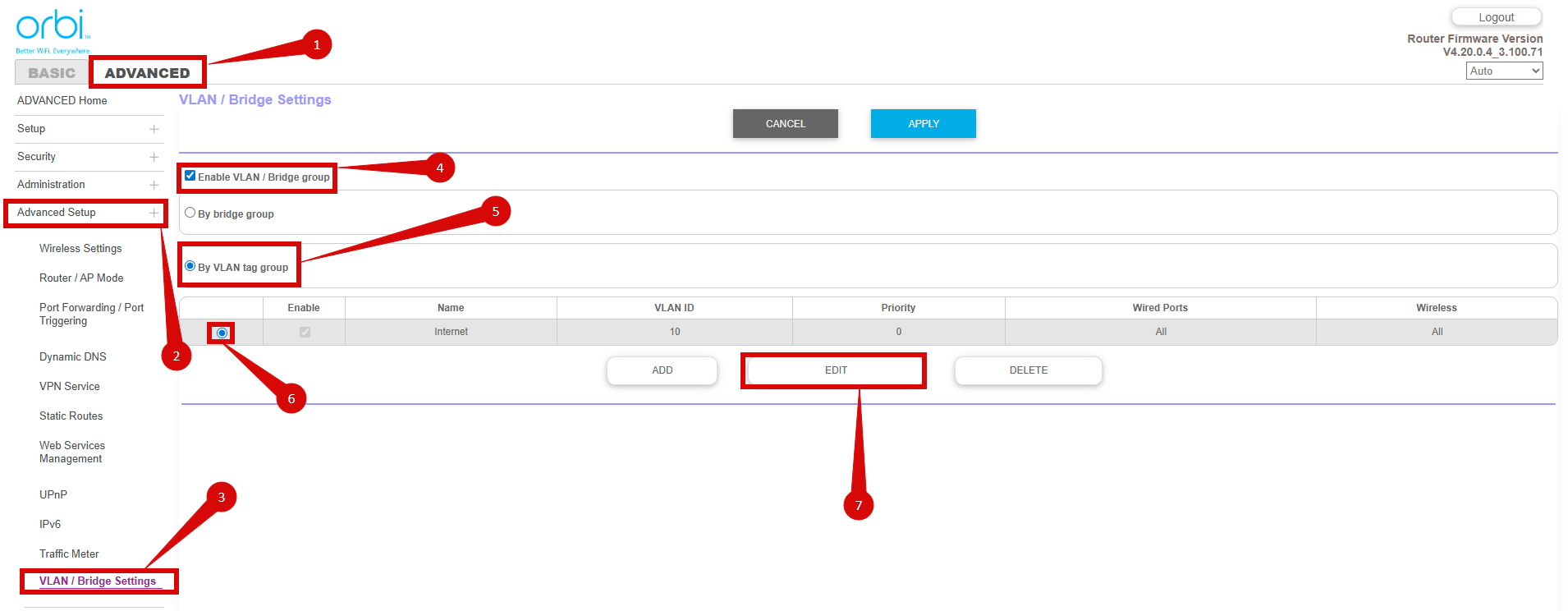

• Navigate to Advanced > Advanced Setup > VLAN / Bridge Settings.
• Enable VLAN Tagging.
• Set the Internet VLAN ID to 10.
• Set the Priority to 0.
• Click Apply to confirm the changes.

• After entering the VLAN and DHCP settings, click Apply to save the configuration.
• The router may restart to apply the new settings. Wait a few minutes for the restart to complete.

• Once the router has restarted, check the status of your Internet connection by looking at the WAN/Internet LED indicator on the router. It should be solid white or blue.
• On your connected device, try accessing a website to confirm that your connection is active.

If your Internet connection is not working:

1. Restart both the ONT and the router by unplugging them for 30 seconds and plugging them back in.
2. Double-check the VLAN and DHCP settings in the router’s configuration.
3. Ensure that the Ethernet cable is securely connected to the correct ports (first port on the ONT and the WAN port on the router).

If you cannot access the router due to forgotten login credentials or misconfiguration, reset the router to factory settings:

1. Find the reset button at the back of the router.
2. Press and hold the reset button for about 10-15 seconds using a pin or paperclip.
3. Release the button once the router’s lights start flashing. The router will reboot and return to factory settings.
4. Log in using the default credentials (admin/password) and repeat the configuration process from Step 2.

If you are still unable to connect, please reach out to our support team at our Support Portal - https://help.simplybroadband.co.nz for further assistance.
