• Physical Connection:
  • Connect the WAN port of the BiPAC 8900AX-2400 router to the first port (LAN1 or GE1) on your Optical Network Terminal (ONT) using an Ethernet cable.
  • Sometimes we connect to second port instead of first - check your Welcome email instructions to make sure which port you should use.
  • Ensure the router is powered on and that your computer or smartphone is connected to the router via Wi-Fi or a LAN cable.

• Login:
  • Open a web browser on a connected device and enter http://192.168.1.254 (or http://192.168.1.1) into the address bar.
  • Log in using the default credentials:
    • Username: admin
    • Password: admin (or check back of router for default login credentials)
  • If you have changed the default credentials and cannot remember them, proceed to Step 8 for resetting the router.

• Once logged in, follow these steps to set up the Internet connection type:

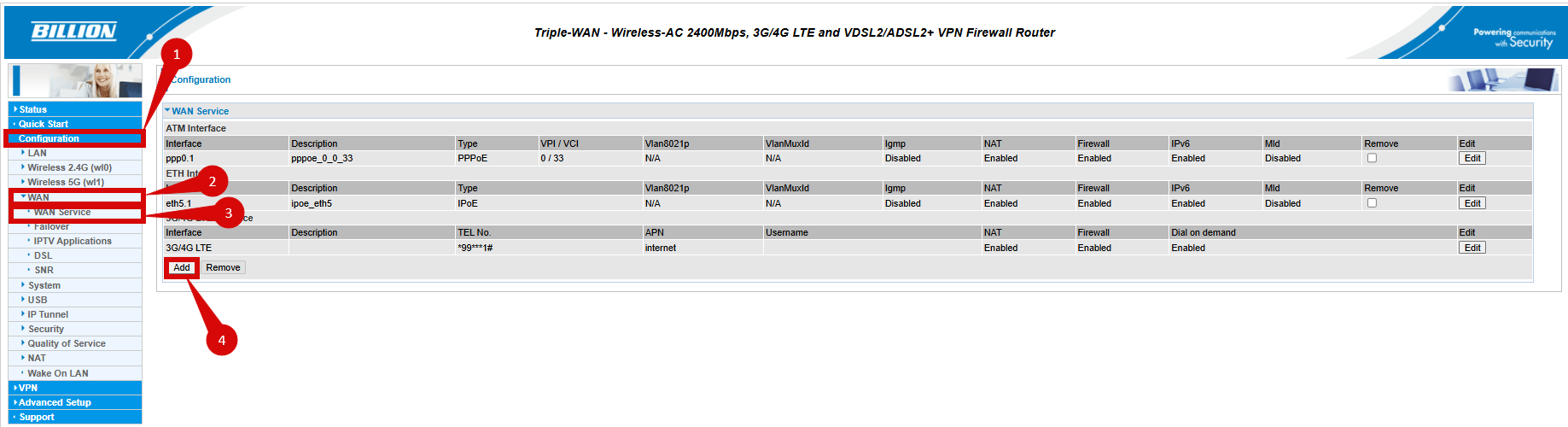

  • Navigate to Configuration > WAN > WAN Services (step 1 - 3).
  • Click Add (step 4).

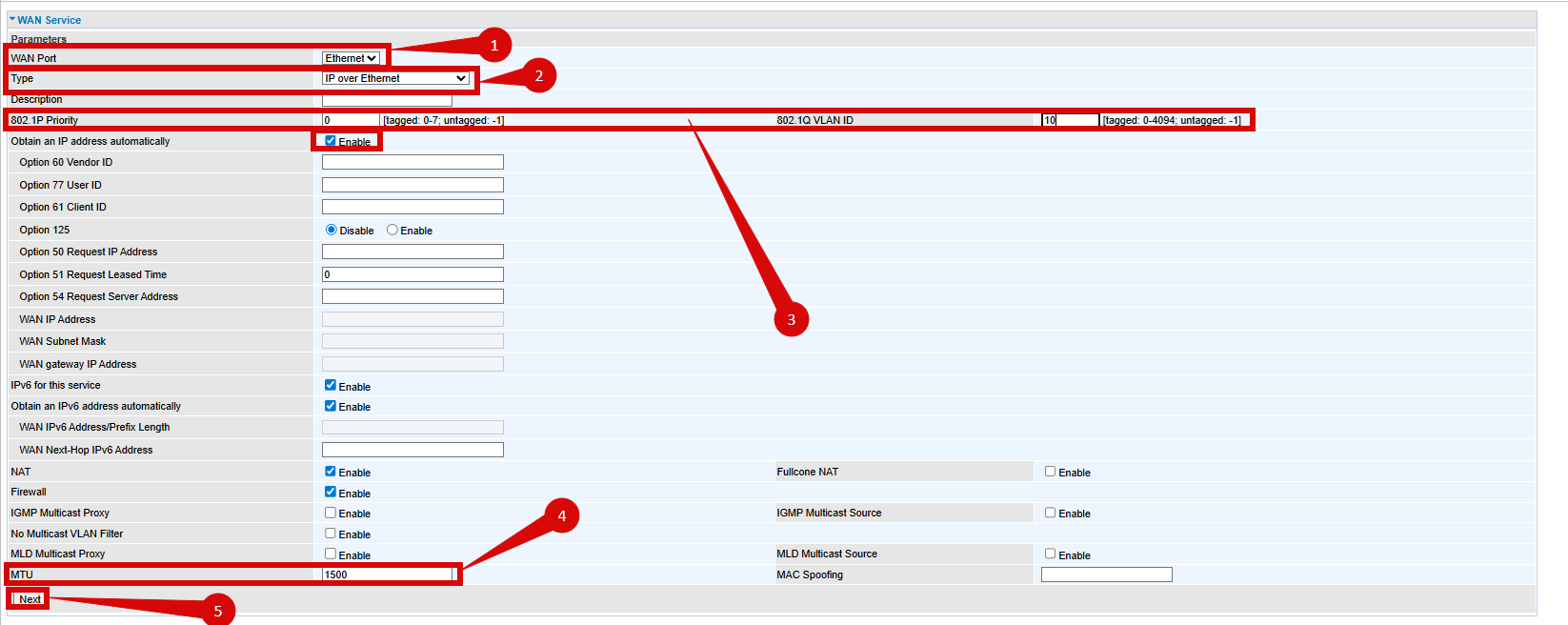

• WAN Port  set to Ethernet (step 1).
• Type set to IP over Ethernet (step 2)
• 802.1P Priority = 0 (step 3).
• 802.1Q VLAN ID  = 10 (step 3).
• MTU set to 1500 (step 4).
• Click Next (step 5).

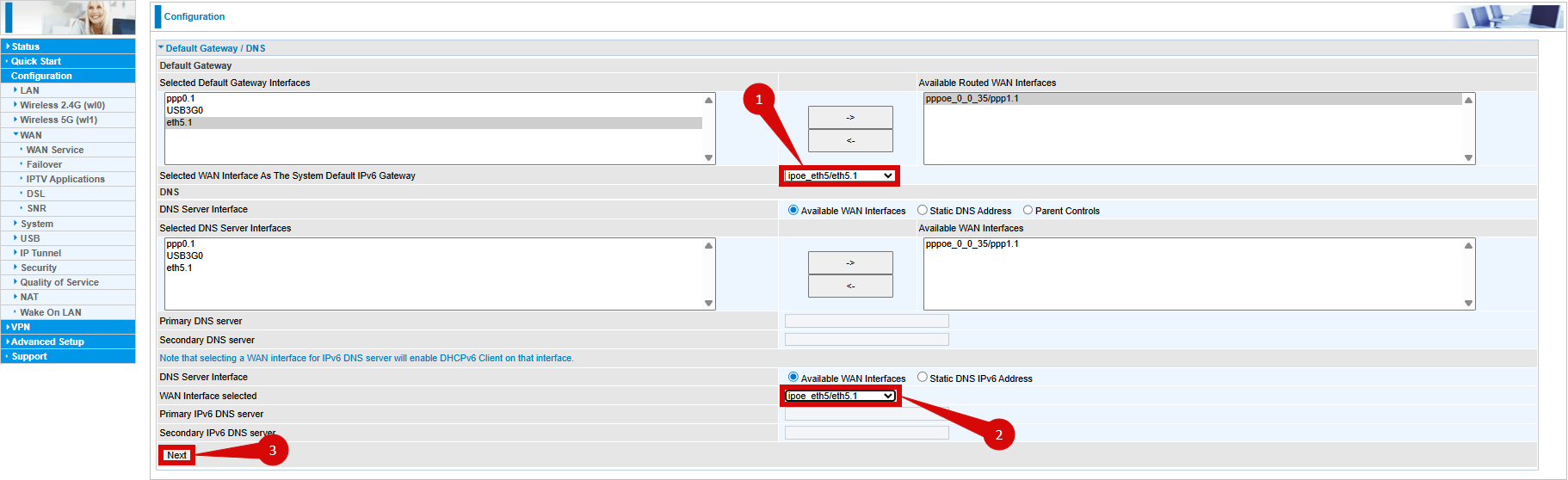

• Set Selected WAN Interface As The System Default IPv6 Gateway to ipoe_eth5/eth5.1 (step 1).
• Set WAN Interface selected to ipoe_eth5/eth5.1 (step 2).
• Click Next (step 5) to save this.

• After entering the VLAN and WAN settings, please ensure that you enable the profile you just made.
• The router may restart to apply the new settings. Wait a few minutes for the restart to complete.

• Once the router has restarted, check the status of your Internet connection by looking at the WAN/Internet LED indicator on the router. It should be solid green.
• On your connected device, try accessing a website to confirm that your connection is active.

• If your internet connection is not working:
  1. Restart both the ONT and the router by unplugging them for 30 seconds and plugging them back in.
  2. Double-check the VLAN and WAN settings in the router’s configuration.
  3. Ensure that the ethernet cable is securely connected to the correct ports (first port on the ONT and the WAN port on the router).

• If you cannot access the router due to forgotten login credentials or misconfiguration, reset the router to factory settings:
  1. Find the reset button at the back of the router.
  2. Press and hold the reset button for about 10-15 seconds using a pin or paperclip.
  3. Release the button once the router’s lights start flashing. The router will reboot and return to factory settings.
  4. Log in using the default credentials (admin/admin) and repeat the configuration process from Step 2.

If you are still unable to connect, please reach out to our support team at our Support Portal - https://help.simplybroadband.co.nz for further assistance.
